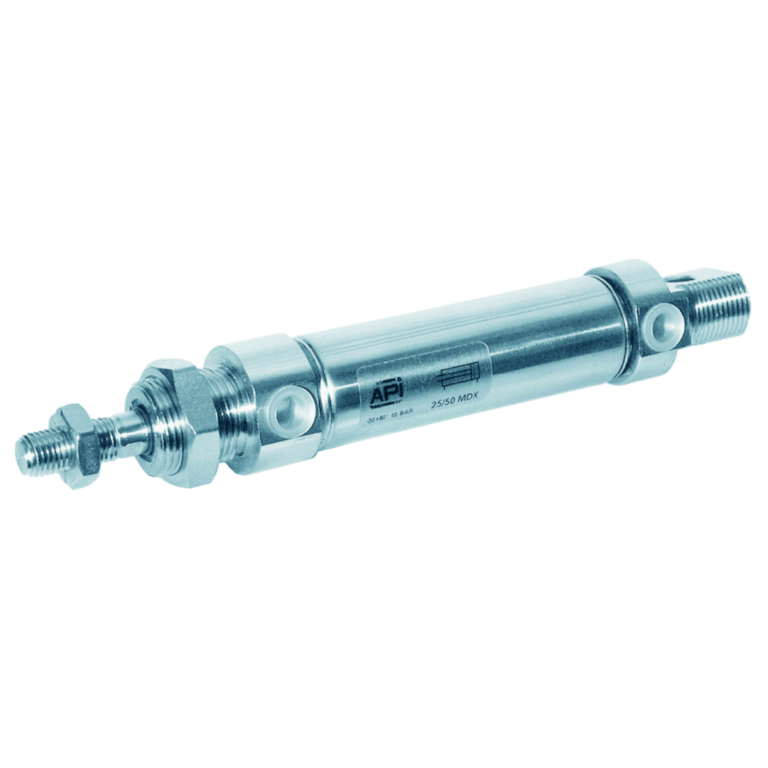

16mm Bore MDX Stainless Steel Double Acting Cylinder ISO 6432

FREE UK MAINLAND DELIVERYavailable on orders over£250.00label-placeholderExclusions apply

Download Datasheet

连续ct descriptionStainless Steel 316L double acting, non magnetic pneumatic cylinder conforming to ISO 6432. End caps manufactured from AISI 316 stainless steel, barrel manufactured from AISI 304 stainless steel. Piston rod AISI 316 lapped stainless steel. Polyurethane piston rod seal ensures low friction and long service life. Operating pressure of 1 - 10 bar with temperature rating of -20C to 80C. ATEX upon request.Read Full Description

t<\"wc-product-table-controls wc-product-table-below\"p>>"}" data-filters="false" data-order="[]">

产品代码	Description	PriceEx. VATIncl. VAT	TotalEx. VATIncl. VAT	Quantity
16/10MDX	16mm Bore / 10mm Stroke Stainless Steel Double Acting Cylinder ISO 6432	£89.77Ex. VAT£107.72Incl. VAT	£89.77Ex. VAT£107.72Incl. VAT	16mm Bore / 10mm Stroke Stainless Steel Double Acting Cylinder ISO 6432 quantity
16/25MDX	16mm Bore / 25mm Stroke Stainless Steel Double Acting Cylinder ISO 6433	£91.43Ex. VAT£109.72Incl. VAT	£91.43Ex. VAT£109.72Incl. VAT	16mm Bore / 25mm Stroke Stainless Steel Double Acting Cylinder ISO 6433 quantity
16/50MDX	16mm Bore / 50mm Stroke Stainless Steel Double Acting Cylinder ISO 6434	£94.06Ex. VAT£112.87Incl. VAT	£94.06Ex. VAT£112.87Incl. VAT	16mm Bore / 50mm Stroke Stainless Steel Double Acting Cylinder ISO 6434 quantity
16/80MDX	16mm Bore / 80mm Stroke Stainless Steel Double Acting Cylinder ISO 6435	£97.16Ex. VAT£116.59Incl. VAT	£97.16Ex. VAT£116.59Incl. VAT	16mm Bore / 80mm Stroke Stainless Steel Double Acting Cylinder ISO 6435 quantity
16/100MDX	16mm Bore / 100mm Stroke Stainless Steel Double Acting Cylinder ISO 6436	£100.21Ex. VAT£120.25Incl. VAT	£100.21Ex. VAT£120.25Incl. VAT	16mm Bore / 100mm Stroke Stainless Steel Double Acting Cylinder ISO 6436 quantity
16/125MDX	16mm Bore / 125mm Stroke Stainless Steel Double Acting Cylinder ISO 6437	£99.33Ex. VAT£119.20Incl. VAT	£99.33Ex. VAT£119.20Incl. VAT	16mm Bore / 125mm Stroke Stainless Steel Double Acting Cylinder ISO 6437 quantity
16/160MDX	16mm Bore / 160mm Stroke Stainless Steel Double Acting Cylinder ISO 6438	£105.46Ex. VAT£126.55Incl. VAT	£105.46Ex. VAT£126.55Incl. VAT	16mm Bore / 160mm Stroke Stainless Steel Double Acting Cylinder ISO 6438 quantity
16/200MDX	16mm Bore / 200mm Stroke Stainless Steel Double Acting Cylinder ISO 6439	£109.61Ex. VAT£131.53Incl. VAT	£109.61Ex. VAT£131.53Incl. VAT	16mm Bore / 200mm Stroke Stainless Steel Double Acting Cylinder ISO 6439 quantity
16/250MDX	16mm Bore / 250mm Stroke Stainless Steel Double Acting Cylinder ISO 6440	£115.51Ex. VAT£138.61Incl. VAT	£115.51Ex. VAT£138.61Incl. VAT	16mm Bore / 250mm Stroke Stainless Steel Double Acting Cylinder ISO 6440 quantity
16/320MDX	16mm Bore / 320mm Stroke Stainless Steel Double Acting Cylinder ISO 6441	£124.88Ex. VAT£149.86Incl. VAT	£124.88Ex. VAT£149.86Incl. VAT	16mm Bore / 320mm Stroke Stainless Steel Double Acting Cylinder ISO 6441 quantity
16/400MDX	16mm Bore / 400mm Stroke Stainless Steel Double Acting Cylinder ISO 6442	£133.30Ex. VAT£159.96Incl. VAT	£133.30Ex. VAT£159.96Incl. VAT	16mm Bore / 400mm Stroke Stainless Steel Double Acting Cylinder ISO 6442 quantity
16/500MDX	16mm Bore / 500mm Stroke Stainless Steel Double Acting Cylinder ISO 6443	£146.62Ex. VAT£175.94Incl. VAT	£146.62Ex. VAT£175.94Incl. VAT	16mm Bore / 500mm Stroke Stainless Steel Double Acting Cylinder ISO 6443 quantity

16mm Bore MDX Stainless Steel Double Acting Cylinder ISO 6432

Stainless Steel 316L double acting, non magnetic pneumatic cylinder conforming to ISO 6432. End caps manufactured from AISI 316 stainless steel, barrel manufactured from AISI 304 stainless steel. Piston rod AISI 316 lapped stainless steel. Polyurethane piston rod seal ensures low friction and long service life. Operating pressure of 1 - 10 bar with temperature rating of -20C to 80C. ATEX upon request.

Related products

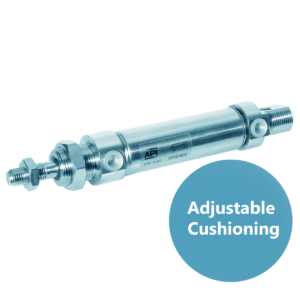

16mm Bore MDMX Adjustable Stainless Steel Double Acting Cylinder ISO 6432
