125mm Bore CIS Double Acting Compact Cylinders ISO 21287

FREE UK MAINLAND DELIVERYavailable on orders over£250.00label-placeholderExclusions apply

Download Datasheet

产品描述Double acting, compact, magnetic pneumatic cylinder conforming to ISO 21287. Stainless steel AISI 304, female thread piston rod (16mm - 25mm chrome plated C45 steel) End caps manufactured from anodised aluminium, extruded barrel manufactured from anodised aluminium, with integral grooves allowing for reed switch mounting option. Polyurethane seals ensure low friction and long service life. Operating pressure of 2 - 10 bar with temperature rating of -20C to 80C. ATEX upon request.Read Full Description

t<\"wc-product-table-controls wc-product-table-below\"p>>"}" data-filters="false" data-order="[]">

125mm Bore CIS Double Acting Compact Cylinders ISO 21287

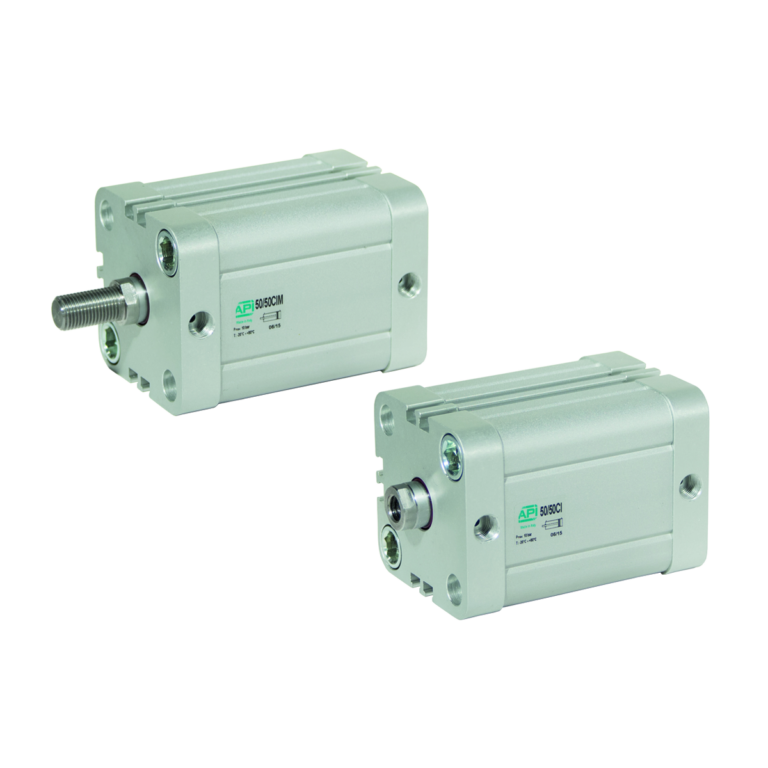

Double acting, compact, magnetic pneumatic cylinder conforming to ISO 21287. Stainless steel AISI 304, female thread piston rod (16mm - 25mm chrome plated C45 steel) End caps manufactured from anodised aluminium, extruded barrel manufactured from anodised aluminium, with integral grooves allowing for reed switch mounting option. Polyurethane seals ensure low friction and long service life. Operating pressure of 2 - 10 bar with temperature rating of -20C to 80C. ATEX upon request.

Product Code	Description	PriceEx. VATIncl. VAT	TotalEx. VATIncl. VAT	Quantity
125/5CI	125mm Bore / 5mm Stroke Compact Cylinder	£341.72Ex. VAT£410.06Incl. VAT	£341.72Ex. VAT£410.06Incl. VAT	125mm Bore / 5mm Stroke Compact Cylinder quantity
125/10CI	125mm Bore / 10mm Stroke Compact Cylinder	£344.93Ex. VAT£413.92Incl. VAT	£344.93Ex. VAT£413.92Incl. VAT	125mm Bore / 10mm Stroke Compact Cylinder quantity
125/15CI	125mm Bore / 15mm Stroke Compact Cylinder	£348.51Ex. VAT£418.21Incl. VAT	£348.51Ex. VAT£418.21Incl. VAT	125mm Bore / 15mm Stroke Compact Cylinder quantity
125/20CI	125mm Bore / 20mm Stroke Compact Cylinder	£352.00Ex. VAT£422.40Incl. VAT	£352.00Ex. VAT£422.40Incl. VAT	125毫米/ 20毫米行程紧凑气缸数量
125/25CI	125mm Bore / 25mm Stroke Compact Cylinder	£355.53Ex. VAT£426.64Incl. VAT	£355.53Ex. VAT£426.64Incl. VAT	125mm Bore / 25mm Stroke Compact Cylinder quantity
125/30CI	125mm Bore / 30mm Stroke Compact Cylinder	£359.08Ex. VAT£430.90Incl. VAT	£359.08Ex. VAT£430.90Incl. VAT	125mm Bore / 30mm Stroke Compact Cylinder quantity
125/40CI	125mm Bore / 40mm Stroke Compact Cylinder	£366.17Ex. VAT£439.40Incl. VAT	£366.17Ex. VAT£439.40Incl. VAT	125mm Bore / 40mm Stroke Compact Cylinder quantity
125/50CI	125mm Bore / 50mm Stroke Compact Cylinder	£373.26Ex. VAT£447.91Incl. VAT	£373.26Ex. VAT£447.91Incl. VAT	125mm Bore / 50mm Stroke Compact Cylinder quantity
125/60CI	125mm Bore / 60mm Stroke Compact Cylinder	£380.33Ex. VAT£456.40Incl. VAT	£380.33Ex. VAT£456.40Incl. VAT	125mm Bore / 60mm Stroke Compact Cylinder quantity
125/70CI	125mm Bore / 70mm Stroke Compact Cylinder	£387.43Ex. VAT£464.92Incl. VAT	£387.43Ex. VAT£464.92Incl. VAT	125mm Bore / 70mm Stroke Compact Cylinder quantity
125/80CI	125mm Bore / 80mm Stroke Compact Cylinder	£394.50Ex. VAT£473.40Incl. VAT	£394.50Ex. VAT£473.40Incl. VAT	125mm Bore / 80mm Stroke Compact Cylinder quantity
125/100CI	125mm Bore / 100mm Stroke Compact Cylinder	£407.41Ex. VAT£488.89Incl. VAT	£407.41Ex. VAT£488.89Incl. VAT	125mm Bore / 100mm Stroke Compact Cylinder quantity
125/125CI	125mm Bore / 125mm Stroke Compact Cylinder	£426.38Ex. VAT£511.66Incl. VAT	£426.38Ex. VAT£511.66Incl. VAT	125mm Bore / 125mm Stroke Compact Cylinder quantity
125/150CI	125mm Bore / 150mm Stroke Compact Cylinder	£971.49Ex. VAT£1,165.79Incl. VAT	£971.49Ex. VAT£1,165.79Incl. VAT	125mm Bore / 150mm Stroke Compact Cylinder quantity
125/160CI	125mm Bore / 160mm Stroke Compact Cylinder	£451.17Ex. VAT£541.40Incl. VAT	£451.17Ex. VAT£541.40Incl. VAT	125mm Bore / 160mm Stroke Compact Cylinder quantity
125/200CI	125mm Bore / 200mm Stroke Compact Cylinder	£479.54Ex. VAT£575.45Incl. VAT	£479.54Ex. VAT£575.45Incl. VAT	125mm Bore / 200mm Stroke Compact Cylinder quantity
125/250CI	125mm Bore / 250mm Stroke Compact Cylinder	£514.96Ex. VAT£617.95Incl. VAT	£514.96Ex. VAT£617.95Incl. VAT	125mm Bore / 250mm Stroke Compact Cylinder quantity
125/300CI	125mm Bore / 300mm Stroke Compact Cylinder	£550.35Ex. VAT£660.42Incl. VAT	£550.35Ex. VAT£660.42Incl. VAT	125mm Bore / 300mm Stroke Compact Cylinder quantity
125/320CI	125mm Bore / 320mm Stroke Compact Cylinder	£564.52Ex. VAT£677.42Incl. VAT	£564.52Ex. VAT£677.42Incl. VAT	125mm Bore / 320mm Stroke Compact Cylinder quantity
125/350CI	125mm Bore / 350mm Stroke Compact Cylinder	£585.78Ex. VAT£702.94Incl. VAT	£585.78Ex. VAT£702.94Incl. VAT	125mm Bore / 350mm Stroke Compact Cylinder quantity
125/400CI	125mm Bore / 400mm Stroke Compact Cylinder	£621.20Ex. VAT£745.44Incl. VAT	£621.20Ex. VAT£745.44Incl. VAT	125mm Bore / 400mm Stroke Compact Cylinder quantity
125/450CI	125mm Bore / 450mm Stroke Compact Cylinder	£656.61Ex. VAT£787.93Incl. VAT	£656.61Ex. VAT£787.93Incl. VAT	125mm Bore / 450mm Stroke Compact Cylinder quantity
125/500CI	125mm Bore / 500mm Stroke Compact Cylinder	£692.05Ex. VAT£830.46Incl. VAT	£692.05Ex. VAT£830.46Incl. VAT	125mm Bore / 500mm Stroke Compact Cylinder quantity

Related products

100mm Bore CIS Double Acting Compact Cylinders ISO 21287

16mm Bore CIS Double Acting Compact Cylinders ISO 21287

20mm Bore CIS Double Acting Compact Cylinders ISO 21287

25mm Bore CIS Double Acting Compact Cylinders ISO 21287

32毫米孔CIS Double Acting Compact Cylinders ISO 21287

125mm Bore CIS Double Acting Compact Cylinders ISO 21287

See Data Sheet For Single Acting & Other Variations Available
